Engineering the Best Silicone-Free Thermal Pad for EV Electronics

As EV systems run hotter and tighter, the Silicone-free thermal pad for automotive electronics stops silent contamination before it wrecks performance, cutting risk where silicone bleeds quietly ruins sensitive boards.

Engineers and buyers want clean, stable materials that behave on the line, hold tolerance, and avoid costly failures.

Key Points for Silicone-Free Thermal Pad for Automotive Electronics

1. Defining Performance: Thermal conductivity and dielectric strength balance heat transfer with electrical insulation for ECUs, inverters, and BMS.
2. Material Breakdown: Silicone-free matrices (acrylic, polyurethane) with boron nitride or graphite eliminate bleed while ensuring stability.
3. Engineering Thickness: Optimize compressibility, shore hardness, and bond line control to minimize thermal resistance in automated assembly.
4. Compliance & Validation: Meet IATF 16949, AEC-Q100, RoHS/REACH, UL 94; verify thermal cycling, breakdown voltage, and volume resistivity under automotive conditions.

Silicone-Free Thermal Pad for Automotive Electronics Basics

The Silicone-free thermal pad for automotive electronics is gaining traction as EV systems get hotter and tighter. From power control to battery safety, heat and insulation can’t slip up. This silicone-free thermal interface material keeps things cool, clean, and electrically safe—without the bleed and pump-out issues of traditional pads.

Defining Thermal Conductivity and Dielectric Strength in Pads

A Silicone-free thermal pad for automotive electronics lives or dies by two core material properties:

• Thermal conductivity drives heat transfer away from chips.
• Dielectric strength ensures electrical insulation under high breakdown voltage.
• Stability as a thermal interface material keeps performance steady over time.

1. High conductivity reduces hot spots in inverters.
2. Strong dielectric strength protects compact power modules.
3. Balanced filler design supports safe heat transfer without sacrificing insulation.

When engineers spec a silicone-free thermal pad, they often break evaluation into:

• Performance Layer
  • ▸ Measured thermal conductivity
  • ▸ Thickness tolerance
• Electrical Safety Layer
  • ▸ Rated dielectric strength
  • ▸ Tested breakdown voltage

In short, the right pad moves heat fast and blocks current completely. That’s the deal.

Key Operating Temperature and Long-Term Stability Requirements

Automotive electronics face wild swings in operating temperature.

• –40°C cold starts
• Rapid load spikes
• Years of thermal cycling

A Silicone-free thermal pad for automotive electronics must survive:

1. Continuous high-temperature range exposure
2. Repeated thermal aging
3. Resistance to material degradation

Testing usually follows a layered path:

• Environmental Stress
  • Cycling validation
  • Humidity soak
• Reliability Metrics
  • Long-term reliability tracking
  • Post-aging thermal resistance check

“EV power electronics are entering a reliability-focused phase, where material stability under thermal cycling is now a core supplier benchmark,” noted a 2025 McKinsey mobility update.

Brands like Sheen Materials align pad formulations with these evolving automotive-grade demands.

Role of Compressibility and Chemical Resistance in EV Modules

In EV modules, gaps are never perfect. That’s where compressibility steps in.

• Enables controlled gap filling

• Improves stress distribution

• Protects delicate dies

A silicone-free gap filler pad also needs strong chemical resistance against:

• Automotive fluids
  • Coolants
  • Transmission oils
• Battery vapors

Evaluation typically unfolds as:

1. Measure baseline thickness.
2. Apply compression load.
3. Re-test recovery and mechanical stability.

Good material compatibility prevents swelling, cracking, or performance drift. Sheen Materials designs silicone-free thermal interface pads that balance softness with structural backbone, keeping EV modules tight and reliable.

Application Areas: ECU, Inverter, Battery Management Systems

The Silicone-free thermal pad for automotive electronics fits across key automotive applications:

• ECU – stable thermal management in compact housings
• Inverter – insulation for high-voltage power electronics
• Battery Management System – safe heat spread in EV packs

In practice:

1. Mount the pad between the heat source and the cold plate.
2. Apply uniform compression.
3. Validate temperature drop under load.

Within electric vehicles, every watt counts. A silicone-free thermal pad reduces contamination risk while improving thermal management efficiency. That’s why engineers sourcing from Sheen Materials increasingly choose silicone-free thermal solutions for next-gen automotive electronics.

Materials Breakdown: Silicone vs. Silicone-Free Pads

In automotive electronics, heat is no small thing. Control units, battery systems, and power modules all need steady cooling to stay sharp. Choosing between silicone and non-silicone materials can feel tricky. This breakdown keeps it real, especially for engineers searching for a reliable Silicone-free thermal pad for automotive electronics.

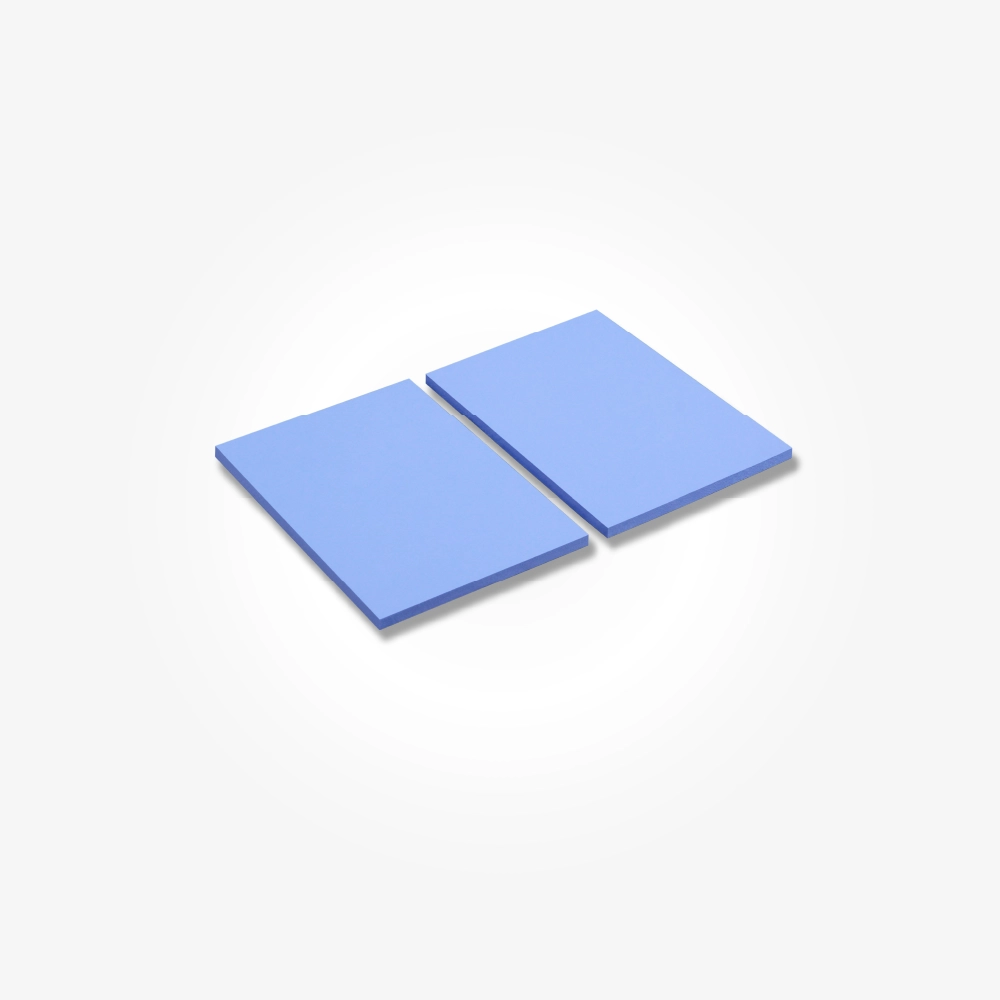

Silicone Thermal Pads

Silicone pads rely on Silicone material blended with ceramic fillers to improve Thermal conductivity and smooth Heat transfer across tight gaps. The material’s natural Compressibility helps fill uneven surfaces, which is why many legacy automotive electronics thermal pad designs still use it.

Core material traits include:

• Strong Dielectric properties for insulation
• Stable thermal cycling performance
• Flexible structure for vibration-heavy modules

Yet trade-offs show up over time.

1. Outgassing may occur in high-temperature zones.
2. Volatility can lead to slight oil bleed.
3. Long-term Contamination risk may affect optical sensors or sensitive ECUs.

For standard control boards, silicone works fine. In high-density EV battery systems, things get stricter. A Silicone-free thermal pad for automotive electronics often becomes the safer bet when contamination control matters most.

Manufacturers like Sheen Materials still offer silicone options, but the push toward cleaner systems is changing preferences fast.

Silicone-Free Thermal Pads

A Silicone-free thermal pad for automotive electronics uses Non-silicone materials such as modified acrylic or polyurethane, paired with boron nitride or graphite for strong Heat dissipation. The focus here is simple: low bleed, low odor, low risk.

Key performance highlights:

• • Low outgassing for enclosed modules
• • Improved Material stability under EV load cycles
• • Better Contamination prevention

In EV applications, reliability is everything.

Performance pathway in automotive systems:

1. Pad conforms to micro gaps.
2. Heat moves efficiently through the ceramic network.
3. Electrical isolation remains intact.
4. Long-term Thermal performance stays consistent.

This makes the Silicone-free thermal pad for automotive electronics a practical solution for battery management systems, onboard chargers, and ADAS modules. Engineers looking for a silicone-free thermal pad that balances Reliability and insulation often turn to Sheen Materials for validated options.

As vehicle electronics evolve, the Silicone-free thermal pad for automotive electronics is no longer niche. It’s quickly becoming the default choice for cleaner, safer, high-power designs.

5 Steps to Engineer Optimal Pad Thickness

A Silicone-free thermal pad for automotive electronics must hit the sweet spot between compression, heat flow, and production reality. Get thickness wrong, and even premium materials underperform. Let’s break it down in a practical, shop-floor way.

Balancing Compressibility with Shore Hardness

When tuning compressibility and shore hardness, it’s not just about softness. It’s about control under mechanical stress.

• Target durometer range for automotive modules: 30–70 Shore OO
• Compression set after 1,000 hrs @125°C: <15%
• Elastic recovery ≥90%

1. Define load conditions from the ECU housing.
2. Match material properties to clamp force.
3. Validate deformation after thermal cycling.

Key interactions:

• Elasticity
  • High elasticity
    • + Better gap fill
    • − Risk of pump-out
  • Low elasticity
    • + Dimensional control
    • − Incomplete interface contact
• Mechanical stress
  • Static compression
  • Vibration-induced shear

A Silicone-free thermal pad for automotive electronics must resist oil fog and prevent siloxane migration. That’s why Sheen Materials focuses on non-silicone matrices engineered for stable material properties across long service intervals.

Short takeaway? Soft isn’t always smart. Balanced hardness keeps thermal impedance steady.

Selecting Ceramic Fillers: Boron Nitride vs. Aluminum Oxide

Choosing ceramic fillers shapes thermal and dielectric behavior.

• Boron nitride
  • ↑ Heat spreading
  • Stable dielectric strength
• Aluminum oxide
  • Cost-friendly
  • Reliable insulation

“Electrified vehicle platforms are pushing higher power density and tighter packaging, increasing the demand for advanced thermal interface materials,” noted a 2025 IDTechEx report on automotive thermal management.

For a Silicone-free thermal pad for automotive electronics, filler dispersion and particle size control are everything. Poor dispersion kills performance fast. Sheen Materials blends hybrid systems to balance conductivity and cost without sacrificing insulation.

Controlling Bond Line Thickness for Minimal Thermal Resistance

Bond line thickness directly impacts thermal resistance. Thinner usually means better heat flow—but only if surfaces cooperate.

Nested control logic:

• Define surface condition
  • Measure surface roughness (Ra)
  • Map component warp
• Set compression target
  • Clamp pressure range
  • Expected squeeze %
• Validate interface
  • IR imaging for heat transfer
  • Cross-section analysis

For thermal interface material design in automotive electronics:

• 0.3–0.5 mm: tight tolerance modules
• 0.5–1.5 mm: uneven cast housings
• >1.5 mm: high-gap battery systems

A Silicone-free thermal pad for automotive electronics reduces the risk of siloxane contamination on optical sensors and connectors. Thin bond lines only work when gap filling remains uniform under vibration. That’s the real-world test.

Ensuring Dispensing Compatibility and Reworkability

Production lines hate surprises. So does maintenance.

Critical checks for dispensing systems:

• Viscosity window aligned with pump specs
• Stable material flow at 20–30°C
• No stringing during automated pick-and-place

Nested workflow:

• During manufacturing process
  • Pump calibration
  • Nozzle diameter selection
• During assembly
  • Compression verification
  • Adhesion check
• During rework
  • Clean peel
  • Minimal residue

Low but controlled adhesion ensures modules can be serviced. A good Silicone-free thermal pad for automotive electronics stays in place yet lifts cleanly. Shops appreciate that. Downtime drops.

Validating Thickness in Automated Assembly and Storage Conditions

Thickness isn’t stable by luck. It’s verified through quality control and environmental testing.

Validation path:

• Storage simulation
  • 85°C / 85% RH aging
  • Shelf-life compression drift
• Production simulation
  • Robotic placement force
  • Inline laser thickness scan
• Lifetime durability
  • Thermal cycling (−40°C to 150°C)
  • Vibration endurance

Monitor:

• ±0.05 mm dimensional stability tolerance
• <5% thickness loss after cycling
• Consistent long-term performance

A Silicone-free thermal pad for automotive electronics must survive warehouse heat and still behave predictably on the line. That’s why Sheen Materials validates thickness under both storage and automated assembly stress before release.

Bottom line? Thickness engineering isn’t guesswork. It’s controlled, measured, and built for the road.

3 Reasons Silicone-Free Thermal Pads Lower Costs

Automotive designers chasing tighter budgets are rethinking material choices. A Silicone-free thermal pad for automotive electronics is not just about heat control—it’s about cleaner processing, smarter automation, and leaner bills of materials. When engineered right, this silicone-free thermal interface material cuts waste, simplifies tooling, and keeps electrical insulation solid without pricey extras.

Reduced Material Waste through Die-Cut and Custom Shapes

A Silicone-free thermal pad for automotive electronics improves manufacturing efficiency by aligning geometry with application zones inside ECUs and battery systems.

• Material waste drops through precision die-cut formats.
• Custom shapes match housing contours.
• Cleaner edges mean measurable scrap reduction.

In automotive electronics production, waste often hides in offcuts. With optimized design flexibility, converters apply:

1. CAD-guided process optimization
2. Tight-tolerance die patterns
3. Batch nesting layouts

Nested production flow:

• Layout Planning
  • Component mapping
  • Heat zone marking
• Conversion Stage
  • Precision die-cut execution
  • Inline inspection
• Assembly Fit
  • Placement validation
  • Adhesion alignment

The result? A silicone-free thermal pad fits right the first time. Less trimming. Fewer rejects. Lower material overhead.

Lower Volume Resistivity without Expensive Polymer Matrix Additives

Electrical insulation matters as much as thermal transfer. A Silicone-free thermal pad for automotive electronics achieves stable volume resistivity through smart material composition, not costly fillers.

Instead of relying on a heavy polymer matrix, additive-free systems enhance electrical conductivity control while maintaining insulation. This thermal interface material approach lowers raw material expense and supports performance enhancement in high-voltage modules.

For automotive OEM buyers, that translates to predictable compliance without additive creep.

Simplified Tooling Requirements for Automated Assembly

Automation loves consistency. A Silicone-free thermal pad for automotive electronics reduces complex tooling requirements and smooths robotics integration.

Assembly gains appear in layers:

• Equipment Design
  • Flat-release liners
  • Stable thickness control
• Production Efficiency
  • Faster pick-and-place
  • Reduced misalignment
• Manufacturing Process
  • Cleaner surfaces
  • Less residue buildup

Short cycle times. Fewer stoppages. Cleaner tooling.

This is where Sheen Materials steps in, supplying silicone-free thermal interface material solutions tailored for automated EV electronics lines. Their approach trims assembly friction while supporting assembly simplification across power modules and control units.

Lower waste. Lower additive cost. Lower tooling complexity.

That’s how a silicone-free thermal pad keeps budgets grounded in real automotive production.

Measuring Thermal Impedance and Breakdown Voltage

Heat removal and insulation must coexist. A Silicone-free thermal pad for automotive electronics sits between live components and grounded heatsinks, so both thermal impedance and breakdown voltage matter.

Validation includes:

• Laser flash or steady-state plate method for heat transfer
• ASTM D149 for breakdown voltage
• IEC-based dielectric strength checks

Standard Lab Data Example

Notice the trade-off. As conductivity improves, insulation margin may narrow. That’s why balance is key.

Validation flow often follows:

1. Measure baseline thermal resistance
2. Apply 2× rated voltage
3. Monitor leakage current
4. Increase voltage until dielectric failure
5. Record breakdown point

For EV inverter modules, insulation failure is not an option. A silicone-free thermal interface pad must maintain electrical integrity while transferring heat fast.

Sheen Materials typically targets >6 kV/mm dielectric strength for traction systems, giving engineers extra safety headroom.

Silicone-Free Thermal Pad for Automotive Electronics Compliance

Modern vehicles pack serious computing power, and heat is the quiet troublemaker. A Silicone-free thermal pad for automotive electronics helps manage temperature without silicone bleed or contamination. When automotive control units must meet global rules, material choice stops being casual and starts being critical.

Automotive Grade Standards: IATF 16949 and AEC-Q100

In automotive production, compliance is layered and strict.

1. automotive standards demand traceability from raw material to final module.
2. IATF 16949 defines quality management systems across suppliers.
3. AEC-Q100 validates component qualification under thermal and electrical stress.

For a Silicone-free thermal pad for automotive electronics, meeting these rules means:

• Stable thermal impedance during vibration
• No silicone migration onto sensitive chips
• Long-term compliance documentation

Testing Flow

• Material screening
  • Thermal conductivity verification
  • Outgassing inspection
• Reliability validation
  • 1,000+ hour heat aging
  • Thermal cycling (-40°C to 150°C)
• Production control
  • Batch trace coding
  • PPAP documentation

A silicone-free pad for automotive use must survive engine heat, inverter spikes, and daily road shock. That’s why Sheen Materials aligns its silicone-free thermal interface pads with both IATF 16949 systems and AEC-Q100 stress expectations, keeping automotive electronics cool without silicone-related risks.

RoHS, REACH, and Halogen-Free Certification Processes

Environmental rules aren’t optional anymore. A Silicone-free thermal pad for automotive electronics must pass chemical screening before it ever touches a PCB.

Key checks include:

• environmental compliance audits
• Review of material restrictions
• Documentation of hazardous substances

A silicone-free gap pad reduces contamination risk while simplifying certification processes. For global OEMs, that’s peace of mind.

Ensuring UL Certification and Automotive-Grade Reliability

Safety matters. Period.

A Silicone-free thermal pad for automotive electronics seeking UL certification goes through:

1. Flammability rating (UL94 V-0 target)
2. Electrical insulation validation
3. Long-term durability and heat exposure trials

In daily language? It must handle heat, resist breakdown, and stay stable for years.

automotive-grade expectations include:

• Consistent performance across temperature swings
• Documented testing data
• Proven reliability in control units

From EV battery systems to ADAS modules, a silicone-free thermal pad keeps electronics steady. Sheen Materials supports OEM programs with validated silicone-free thermal interface solutions built for safety standards and real-world abuse.

When compliance, safety, and heat control all matter, the Silicone-free thermal pad for automotive electronics isn’t just an option—it’s the smart move.
